Product Overview

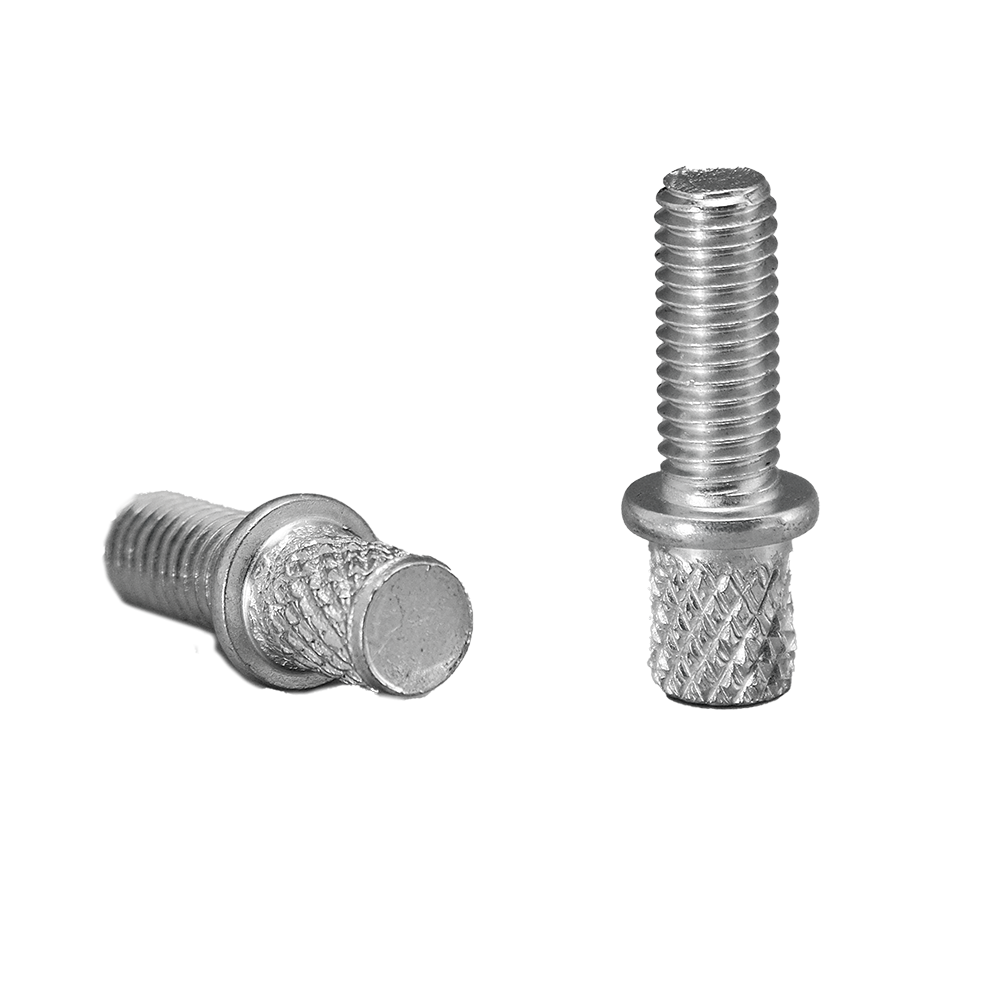

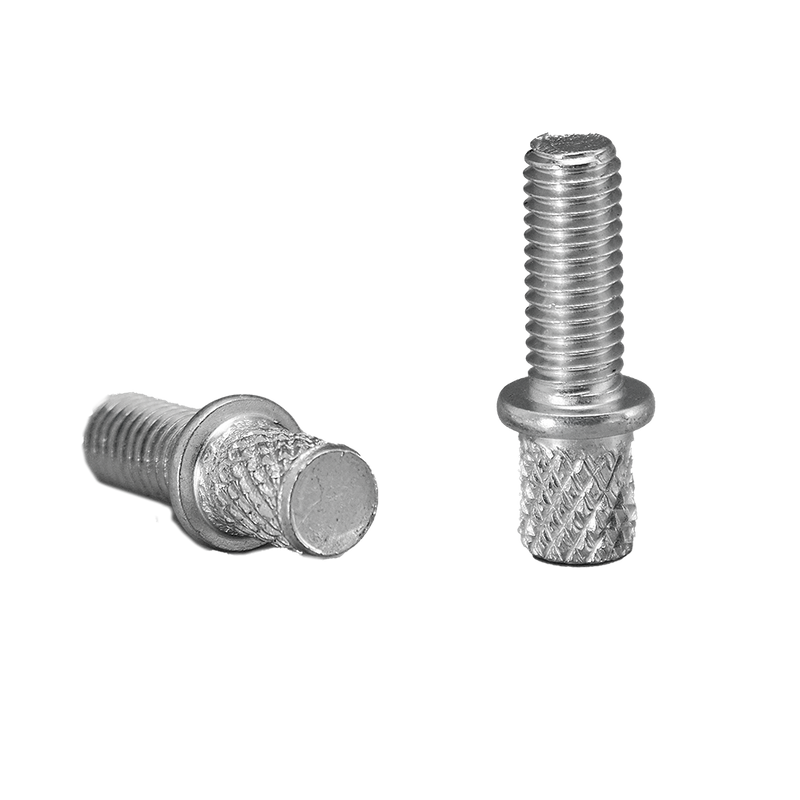

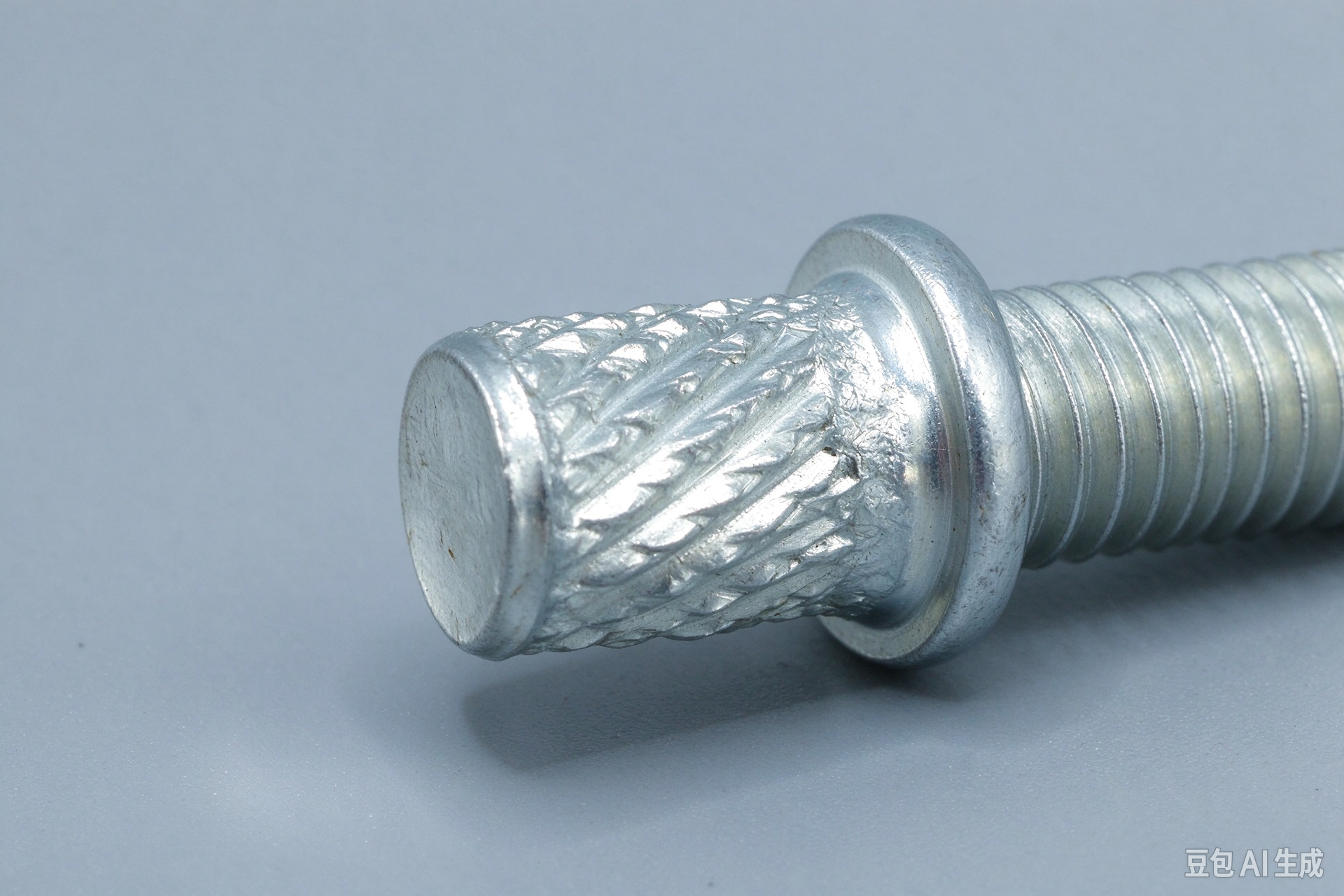

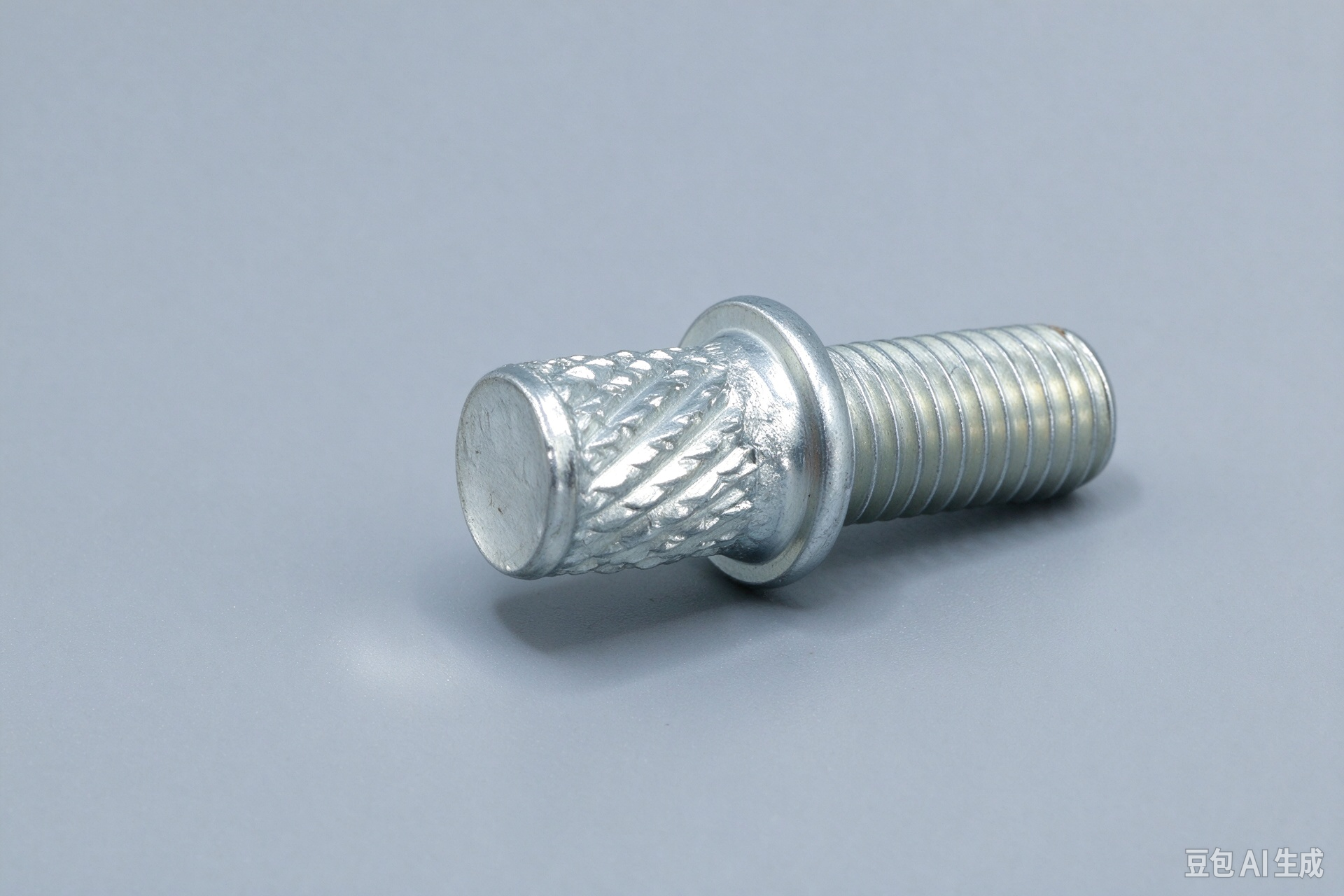

The component shown combines an externally threaded section, a flange and a knurled cylindrical section. The photographs show the overall shape and closer views of the knurled section and flange.
Structure Details
Externally threaded section
Flange between the threaded and knurled sections
Knurled cylindrical section
Tell us how the part fits into your assembly and which features are important to your application. Please share:
Intended application and mating-part information
Required thread size and threaded length, if specified
Dimensions and requirements for the knurled section and flange
Material, surface finish and estimated quantity
Final dimensions and manufacturing requirements are reviewed for each project.
Discuss Your Requirements
Contact JZF Metal to discuss your part requirements. We can start with the information you already have. If drawings are needed, we will arrange for you to send them by email to jzfmetal@outlook.com.
